CWT5WA

A High Performance Automatic/Cobotic Tig Torch featuring a cold-wire feeed system.

550A DC @ 100% Duty Cycle
385A AC @ 100% Duty Cycle
Electrode Size: 1.6-6.4mm / 1/16”-1/4”

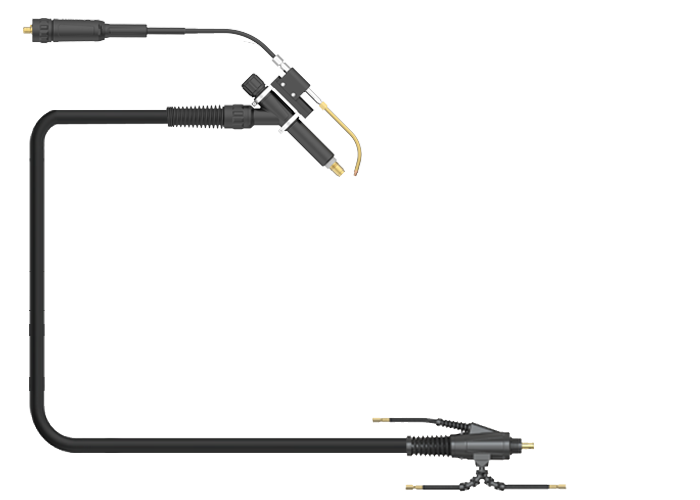

CWT5WA – Automatic / Cobotic Liquid-Cooled High Performance Tig Welding Torch

A High Performance Automatic/Cobotic Tig torch for consistent, high weld quality in the most demanding applocations.  The addition of the cold-wire feed allows precise wire delivery co-ordinated with automated torch movements.

Available with a cobot torch bracket, an adjustable mount for automated welding.

Try it today!

For high weld quality in the most demanding applications

Arc Wear Parts Last Longer!

  • Ceramics will last 5 times longer
  • Back Caps will last 10 times longer
  • Gas Lens Bodies will last 20 times longer
  • Collet Bodies will last 10 times longer

Technical Specification

Cooling Method Liquid-Cooled
Length 4m 8m
Rating: DC 1200W 550A 450A
Rating: AC 1200W 385A 315A
Rating: DC 1600W 550A 450A
Rating: AC 1600W 385A 315A
Duty Cycle: 100% 100%
Electrode Size: 1.6-6.4mm / 1/16″-1/4″
Minimum Liquid Flow Rate 1.5 l/min
Minimum Liquid Inlet Pressure 2.5 Bar
Maximum Liquid Inlet Pressure 5.0 Bar
Maximum Liquid Inlet Temperature 50oC
Operating Temperature -20oC..+40oC

Downloads

Arc Auto – Cobot Series

Product Catalogue

Download
Arc T Auto

Set-Up Guide EN/DA/DE/FR/IT/NL

Download
Arc T Auto

Set-Up Guide EN/ES/PL/PT/RU/SV/CH

Download
View all downloads

Key Elements

Wear Parts

Every component delivers superior performance for increased Arc time and lower overall production costs

Torch Bodies

Step change performance levels achieved with the development of revolutionary cooling and heat zone isolation techniques

Cable Systems

Clever material selection combines flexibility, durability and performance

Key Benefits

  • Push-on / easy grip ceramics
  • One piece collet/collet body – no twisting
  • Heat Zone Isolator ensures 100% ceramic and electrode alignment
  • Optional large gas lens for increased gas envelope

Key Benefits

  • Cooler running torch bodies at elevated power levels

  • Cooler running components increase wear parts life expectancy

Key Benefits

  • Rapid fit and modular rear end systems ensure point of use re-configuration of power input, water/gas hose and control lead terminations

  • Superior grade rubbers ensure cable termination integrity and hose package longevity – (Lab tested to over 1 million flexes)

Core Technologies

Bi-Flow Technology

Higher powered performance from a much smaller footprint

Force Cooling Technology

The cooler running collet assembly maximizes conductivity and extends consumable life

HZI Technology

Cooler running torches with increased power to weight performance ratios

Increased Capacity Liquid Cooling Systems

Re-engineered high-capacity cooling chambers remove excessive heat at source.

Gas Stream Cooling

A highly effective series of passages and wells force cools the collet.

The cooler running collet assembly maximizes conductivity and extends consumable life.

Heat Zone Isolation Technology

Transferred heat from the ceramic cup is isolated by a unique external barrier.

Conducted heat is isolated using large air pockets within the torch body structure resulting in cooler running torches with increased power to weight performance ratios.

In The Box

Collet Body Set-up

Collet Body Starter Kit

Quick Fit Plug Kit

Safety Guide

Gas Lens Set-up

Gas Lens Starter Kit

Quick Fit Plug Kit

Safety Guide
