T1FX

15% more power than a WP9, with a flexi neck.
140A DC @ 35% Duty Cycle
100A AC @ 35% Duty Cycle
Electrode Size: 1.0-3.2mm / 0.04”- 1/8”

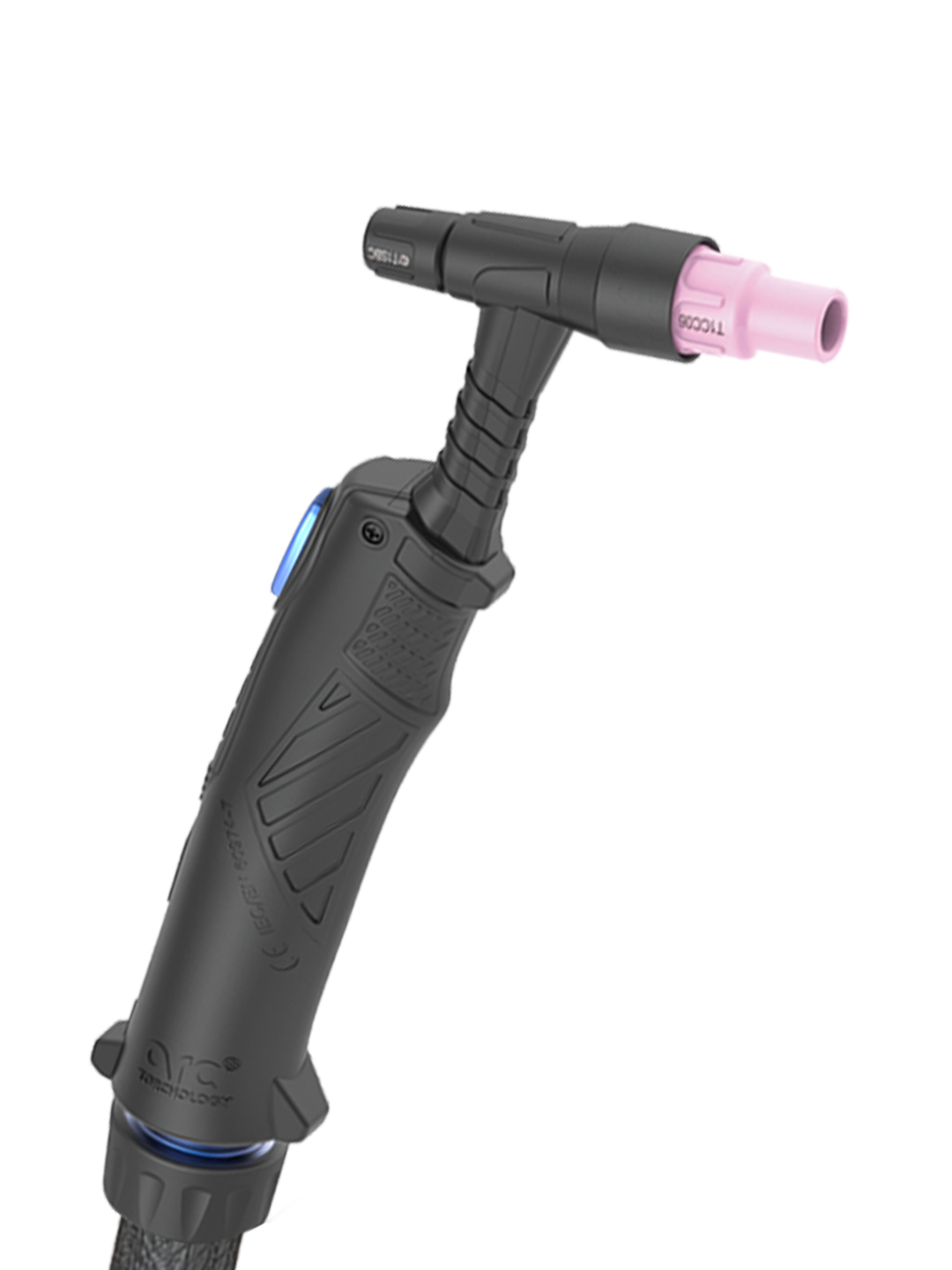

T1FX – Air-Cooled High Performance Flexi-Tig Welding Torch

The smallest Air-Cooled Flexi Tig Torch. At 140 Amps DC it has 15% more power than a WP9.
The body can be bent to virtually any position, allowing quick and easy access to the most difficult positional welds.

Try it today!
T1

Increased Productivity!

Arc Wear Parts Last Longer!

  • Ceramics will last 5 times longer
  • Back Caps will last 10 times longer
  • Gas Lens Bodies will last 20 times longer
  • Collet Bodies will last 10 times longer

Technical Specification

Cooling Method Air-Cooled
Rating: DC 140A
Rating: AC 100A
Duty Cycle: 35%
Electrode Size: 1.0-3.2mm / 0.04″-1/8″

Downloads

Arc T Series

Product Catalogue

Download
Arc T Series

Set-Up Guide EN/DA/DE/FR/IT/NL

Download
Arc T Series

Set-Up Guide EN/ES/PL/PT/RU/SV/CH

Download
View all downloads

Key Elements

Wear Parts

Every component delivers superior performance for increased Arc time and lower overall production costs

Torch Bodies Back Caps

Step change performance levels achieved with the development of revolutionary cooling and heat zone isolation techniques

Handle Sets

Fits seamlessly into the hand. 'Plug and play' switch options for machine control functionality and Point of Sale configuration

Cable Systems

Clever material selection combines flexibility, durability and performance

Key Benefits

  • Push-on / easy grip ceramics
  • One piece collet/collet body – no twisting
  • Heat Zone Isolator ensures 100% ceramic and electrode alignment
  • Optional large gas lens for increased gas envelope

Key Benefits

  • Cooler running torch bodies at elevated power levels

  • Cooler running components increase wear parts life expectancy

  • Advanced material selection and component design enhances flex neck life expectancy

  • Superior grade phenolics for maximum thermal resistance and improved durability of back caps

  • Air-Cooled Flex Life 500 Flexes – 5 times the life of a standard Air-Cooled flex body

Key Benefits

  • Utilizes air gap technology for cooler running handles
  • Hard and soft material elements for an effortless grip
  • Fully interchangeable ‘plug and play’ modules with analogue and digital control options
  • Infinite adjustment of welding parameters from the torch handle
  • Optional integrated handle readout displays all welding and machine parameters in “real time”

Key Benefits

  • Rapid fit and modular rear end systems ensure point of use reconfiguration of power input, water/gas hose and control lead terminations

  • Superior grade rubbers ensure cable termination integrity and hose package longevity – (Lab tested to over 1 million flexes)

  • Front end leather cover and knuckle joint combine for a really supple cable at the welders wrist.

Core Technologies

Force Cooling Technology

The cooler running collet assembly maximizes conductivity and extends consumable life

HZI Technology

Cooler running torches with increased power to weight performance ratios

TRS Technology

Quick and easy extension of the electrode without the removal of any other wear parts

Gas Stream Cooling

A highly effective series of passages and wells force cools the collet.

The cooler running collet assembly maximizes conductivity and extends consumable life.

Heat Zone Isolation Technology

Transferred heat from the ceramic cup is isolated by a unique external barrier.

Conducted heat is isolated using large air pockets within the torch body structure resulting in cooler running torches with increased power to weight performance ratios.

Tungsten Release System

Trouble free extension of the electrode with 180° twist of the back cap.

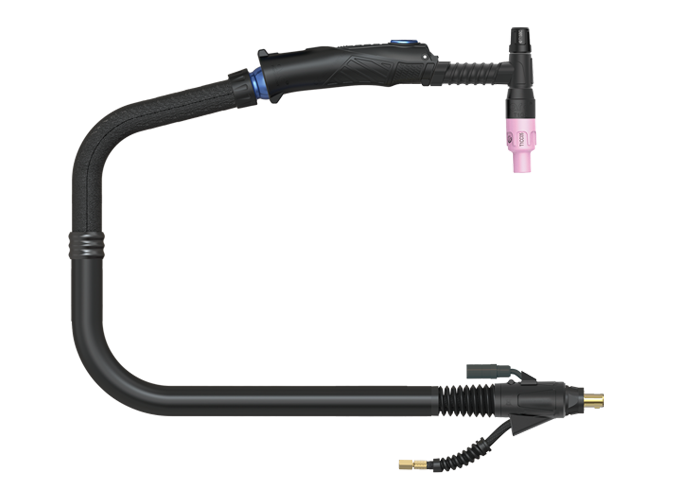

In The Box

Collet Body Set-up

Collet Body Starter Kit

Quick Fit Plug Kit

Safety Information

Gas Lens Set-up

Gas Lens Starter Kit

Quick Fit Plug Kit

Safety Information
