X1

Designed for semi-industrial settings with a 180A duty cycle.

180A CO2 @ 60% Duty Cycle
150A Mixed Gas M21 @ 60% Duty Cycle
Shielding Gas Flow Rate: 10-13 l/min
Volume Flow Rate: Fume Nozzle 41 m3

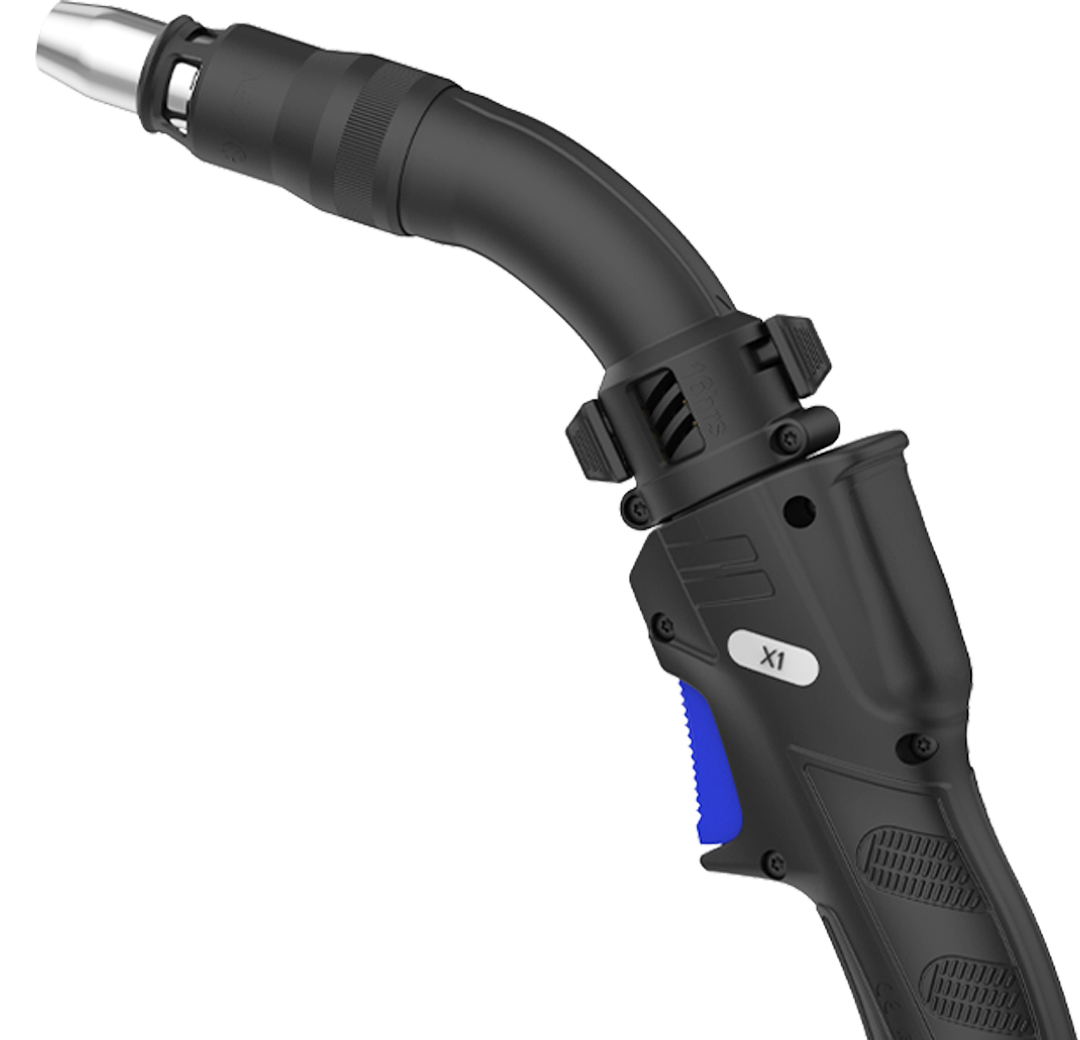

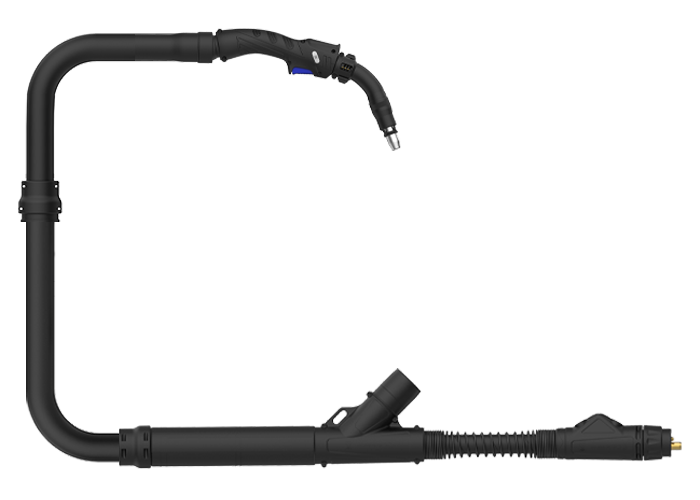

X1 – Air-Cooled Industrial Mig Fume Torch

Designed for semi-industrial settings with a 180A duty cycle.
It effectively captures fumes at the source, minimizing dispersion and ensuring cleaner air.

Make Work Life Easier

No Compromise – safety without sacrifice

  • Feels just like a standard Mig torch
  • Single piece nozzle system conforms to ISO21904-1
  • Lightweight, ergonomic, and easy to control
  • Removes fume without disrupting shielding gas



Technical Specification

Cooling Method Air-Cooled Max. Load
Rating: CO2 180A 4.5KW
Rating: Mixed Gas M21 150A 3.0KW
Duty Cycle 60%
Wire Size 0.6-1.0mm
Volume Flow Rate: Fume Nozzle 41 m3h
Volume Rate: Connector 50.9 m3h
Pressure Drop 5.26 kPa
Shielding Gas Flow Rate 10-13 l/min
Efficiency 93%

Downloads

Arc X Fume Series

Product Catalogue

Download
Arc X Fume Series

Set-Up Guide

Download
View all downloads

Key Elements

Light and Manoevrable

Optimized weight distribution for enhanced balance and reduced strain

Unobstructed Visibility

Specially engineered low-profile nozzle geometry

Simplified Maintenance

Easy disassembly and cleaning

Flexible Cable Sets

Improvements in welder comfort and reductions in welder fatigue

Key Benefits

  •  A lightweight cable and hose system combined with a knuckle joint and support eliminates the feeling of ‘dragging’ the cable.
  • Extraction channels are designed for minimal weight and bulk.

Key Benefits

  • Nozzles enable effective extraction from any angle without obstructing the view or access.

Key Benefits

  • Easy disassembly and cleaning
  • Easily remove and clean whilst sucking fume deposits away using the fume extraction unit

Key Benefits

  • New cable structures for improved flexibility and weight reduction
  • Specified and constructed to last over 1 million flexes in life cycle testing

Core Technologies

SIC Technology

Accumulated spatter breaks free when the nozzle is released

Spatter Isolation Chamber

Spatter created by the arc is held within a unique chamber that collects the molten metal droplets

In The Box

Standard Set-up

Spanner

Safety Guide
