X3

The Arc X3 is a true 300 Amp torch.

300A CO2 @ 60% Duty Cycle
270A Mixed Gas M21 @ 60% Duty Cycle
Shielding Gas Flow Rate: 16-18 l/min
Volume Flow Rate: Fume Nozzle 52 m3

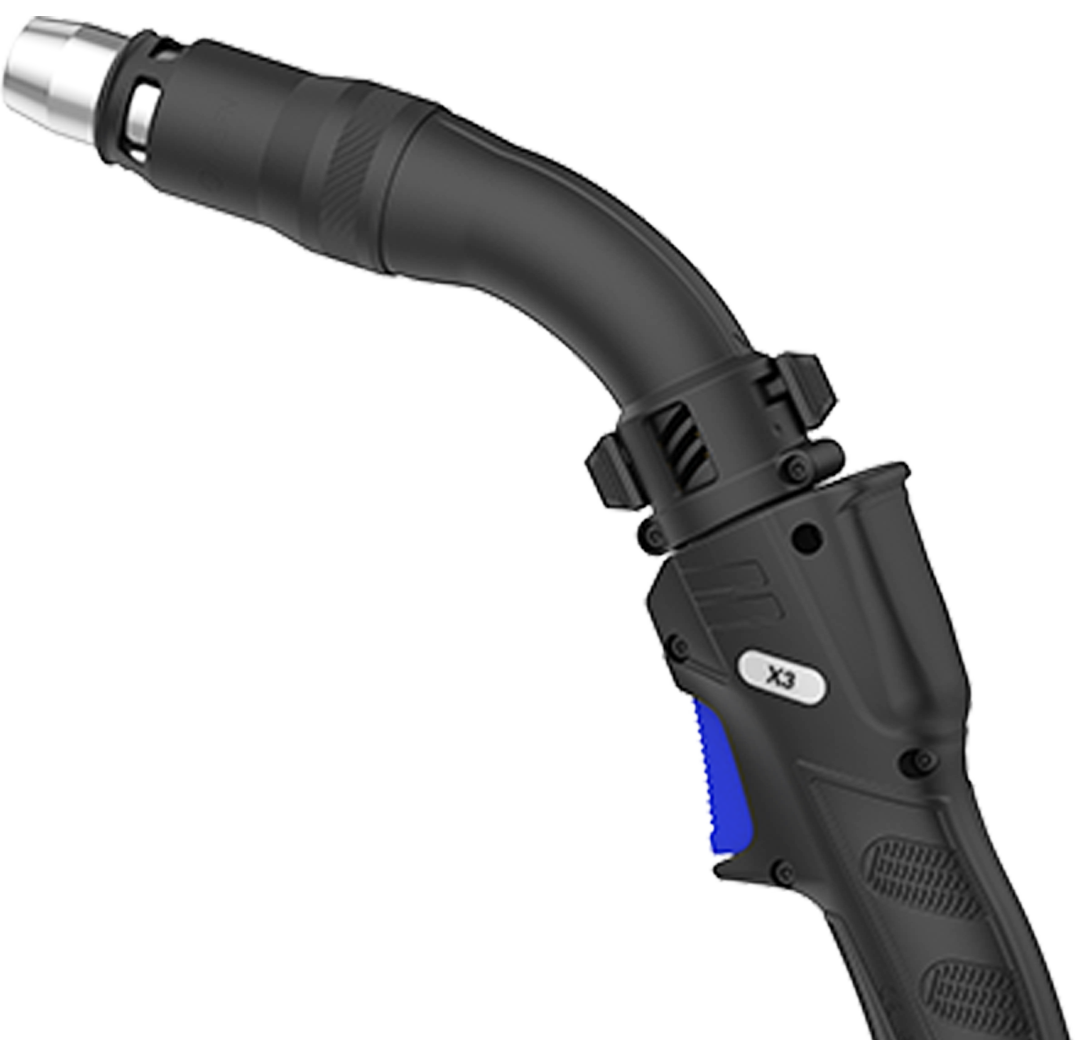

X3 – Air-Cooled High Performance Mig Fume Torch

The Arc X3 delivers a true 300 Amp torch with 98% fume capture at the source.

Make Work Life Easier

No Compromise – safety without sacrifice

  • Feels just like a standard Mig torch
  • Single piece nozzle system conforms to ISO21904-1
  • Lightweight, ergonomic, and easy to control
  • Removes fume without disrupting shielding gas

Technical Specification

Cooling Method Air-Cooled Max. Load
Rating: CO2 300A 11.3KW
Rating: Mixed Gas M21 270A 8.9KW
Duty Cycle 60%
Wire Size 0.9-1.2mm
Volume Flow Rate: Fume Nozzle 52 m3h
Volume Rate: Connector 65 m3h
Pressure Drop 6.2 kPa
Shielding Gas Flow Rate 16-18 l/min
Efficiency 93%

Downloads

Arc X Fume Series

Product Catalogue

Download
Arc X Fume Series

Set-Up Guide

Download
View all downloads

Key Elements

Light and Manoevrable

Optimized weight distribution for enhanced balance and reduced strain

Unobstructed Visibility

Specially engineered low-profile nozzle geometry

Simplified Maintenance

Easy disassembly and cleaning

Flexible Cable Sets

Improvements in welder comfort and reductions in welder fatigue

Key Benefits

  •  A lightweight cable and hose system combined with a knuckle joint and support eliminates the feeling of ‘dragging’ the cable.
  • Extraction channels are designed for minimal weight and bulk.

Key Benefits

  • Nozzles enable effective extraction from any angle without obstructing the view or access.

Key Benefits

  • Easy disassembly and cleaning
  • Easily remove and clean whilst sucking fume deposits away using the fume extraction unit

Key Benefits

  • New cable structures for improved flexibility and weight reduction
  • Specified and constructed to last over 1 million flexes in life cycle testing

Core Technologies

SIC Technology

Accumulated spatter breaks free when the nozzle is released

Spatter Isolation Chamber

Spatter created by the arc is held within a unique chamber that collects the molten metal droplets

In The Box

Standard Set-up

Spanner

Safety Guide
